Rugged Military Servers for Shipborne Programmes and Applications

1725 MacLeod Drive,
GA 30043,
United States of America

Trenton Systems develops rugged servers that guarantee reliability, provide hardened security and exceed complex requirements in adverse naval conditions.

Suitable for critical applications and programmes worldwide, our portfolio of ruggedised, long-life, military-grade computers is equipped with single or dual Xeon® Scalable Performance Servers, DDR4 RAM, and modern peripheral component interconnect express (PCIe) technology to exceed your specifications.

Each rugged server goes through a series of stress tests to ensure optimal performance and is certified to military standards such as MIL-STD-810, MIL-STD-461 and MIL-S-901.

Trenton’s rugged blade servers can be mounted for up to five rack units.
Trenton’s JBOD server allow users to communicate with eight drives simultaneously.
Our blade servers enable tool-less processor board removal and avoid redundant power supplies.
Our rugged workstations and servers feature SATA or NVMe drives for storage.

Our industry-leading rugged computer lifecycle futureproofs continued product availability, saving you time and money on renewed and updated designs, qualifications and certifications.

Accompanied by our robust in-house engineering team, we aim to innovate a solution to fit your exact requirements.

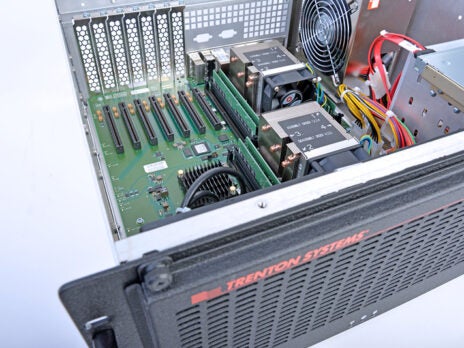

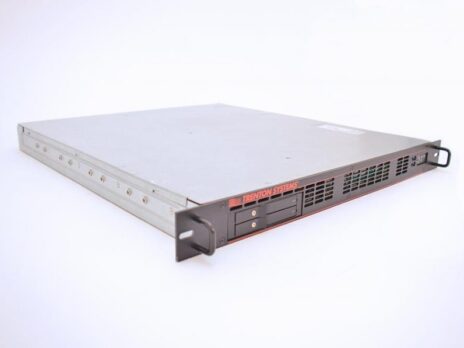

Rugged servers for naval environments

Trenton’s rugged servers offer super-fast performance with up to five units (1U to 5U) for rack mount computers.

These support multiple processor boards with Dual Intel® Xeon® Scalable Performance CPUs, up to 1.5TB DDR4-2933 memory via eight or 12 error-correcting code (ECC) registered memory module (RDIMM) slots, up to 18 PCIe slots (or more with our expansion chassis), and serial ATA (SATA) or non-volatile memory express (NVMe) drives for storage.

High-performance workstations for ruggedised applications

Trenton’s 1U to 5U Rugged™ Core™ Series Workstations are accompanied with a number of features.

These include:

  • Up to 64GB DDR4-2400 memory via four ECC DIMM slots
  • Up to 18 PCIe slots (increasable with our expansion chassis)
  • SATA or NVMe drives for storage

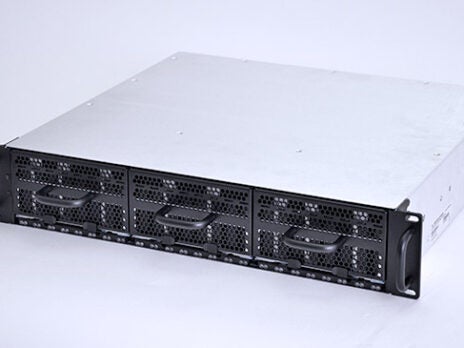

Customisable blade servers

Trenton’s 1U or 2U blade servers offer versatility to any programme or application, enabling tool-less processor board removal and avoiding redundant power supplies.

They can use up to four 1U high server blades or two 2U high server blades so companies can mix and match between single or dual central processing unit (CPU) single-board computers (SBCs) or customise with internal or front-access / hot-swap drives.

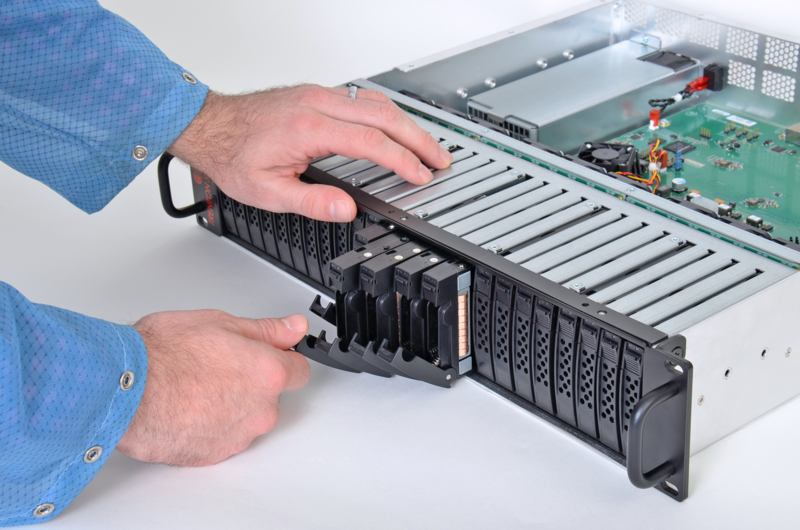

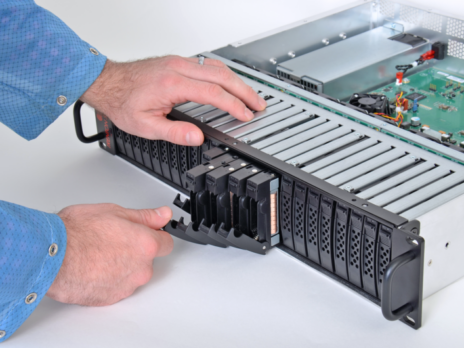

Agnostic, rugged JBOD servers

Trenton’s JBOD servers come with 24 U.2 NVMe solid-state drives (SSDs) with up to 27GB/s read and write speed, enabling a direct, native, end-to-end PCIe connection from multiple hosts to the drives.

With the ability to simultaneously communicate with eight drives, our JBOD server is processor board-agnostic so you can plug-in any SBC of your choice. A gigabit ethernet (GbE) management port also allows you to connect straight to the baseboard management controller (BMC) for system monitoring and control.

The innovative rugged chassis design enables you to access up to eight memory cards at the same time without any additional tools.

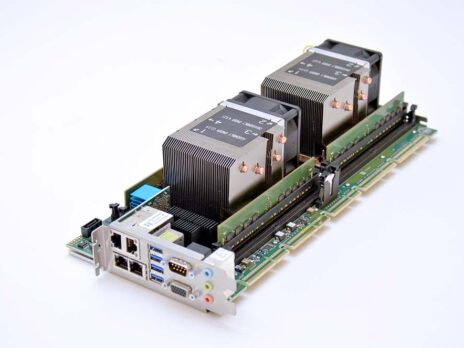

Customisable processor boards

Designed to exceed the most complex computing requirements in adverse conditions, each Trenton rugged processor board is built to operate at peak performance.

Manufactured, assembled and supported in the US, we control the supply chain at the component level. We can customise any board as single or dual CPUs and customised input/output (I/O) interfaces to fit your programme or application.

Expandable PCIe backplanes

Our PCIe backplane features up to 18 slots with the capability of expanding to more using our latest Gen3 PCIe expansion kit.

Simply plug in one of our processor boards into the backplane and extend your PCIe slot count by as many as you need.

White Papers

  • Rugged High-Performance Computing System

    Whether you are thinking about purchasing a JBOD Server or would like to understand its benefits, it is important to note that it is a very high-demand product within a range of industries.

  • Designing Application-Ready Military Computing Solutions

    From command and control centers to ground vehicle applications, manned and unmanned airborne missions, as well as surface and undersea deployments, advances in computing power features and a growing number of transducers' sensing capabilities have translated into greater effectiveness and enhanced situational awareness.


  • Unboxing ION Rugged Mini PC

    Join Business Development Specialist Rachael Eidson and Director of Sales Keifer Sims as they unbox the brand-new, made-in-USA ION Rugged Mini PC.

Press Releases

Products & services

  • Rugged System Components

    Trenton offers rugged system components designed to exceed the most complex computing requirements in the harshest of military conditions.

  • Rugged Blade Servers

    Experience true ruggedness meets modularity with Trenton Rugged Blade Servers. Trenton’s Blade Servers are available in 1U and 2U form factors and can house up to four removable server blades with either Dual Intel Xeon Scalable Performance or single Core I Series CPUs.

  • Rugged Servers

    Lightning fast, powerful 1U to 5U rugged rackmount servers supporting multiple processor boards with Dual Intel® Xeon® Scalable Performance CPUs, up to 1.5TB DDR4-2933 memory via eight or 12 ECC RDIMM slots, up to 18 PCIe slots (or more with our PCIe expansion kit), and SATA or NVMe drives for storage.

  • Rugged JBOD Servers

    Trenton's Rugged JBOD Servers feature the latest NVMe SSDs in a U.2 form factor, offering a higher maximum storage capacity with full redundancy and operating at higher temperatures without throttling.

  • Rugged Workstations

    Packed with drives and PCIe slots, our 1U to 5U rugged rackmount workstations support multiple processor boards with single Intel Core I Series CPUs, up to 64GB DDR4-2400 memory via four ECC DIMM slots, up to 18 PCIe slots (or more with our expansion chassis), and SATA or NVMe drives for storage.
