MIL-Approved Marine Rugged Monitors and Rugged Computers
Danish-based ISIC has vast experience in designing, manufacturing and marketing hardware solutions for harsh environments like WECDIS systems, traffic control systems, medico electronics and avionics. Today the product line of ISIC serves some of the largest companies within the global naval market.
We develop and manufacture a wide range of IEC60945, MIL tested and ECDIS / ARPA compliant panel-PCs, rugged computers and rugged monitors
ISIC is member of Lagercrantz group listed on the Swedish stock exchange.
19IN TFT RETROFIT KIT
Our new rack-mounted 19in (LCD) TFT monitor is a fully compatible drop-in replacement for obsolete rack-mounted CRT monitors such as:
- CONRAC 9521
- BARCOMPRD 9600
The 19in TFT retrofit kit is based on the successful MON1900MII, which is in-service for more than 14 navies, and commercial vessels worldwide. It is fully compliant with IACS E10, IEC 60945, IEC 61174 (WECDIS) and IEC 60936 1/2/3 (RADAR) standards, and has been awarded many international certificates.
Core competences include:
- Unique thermal, hermetic hardware solutions
- Rugged design
- Extended product lifetime
- Customised solutions
- Configuration control with full traceability
- ECDIS calibration experts
Key added features of the 19in TFT retrofit kit include:
- Scalable inter-changeable picture in picture
- Full control via serial link
- Anti-glare glass
- Excellent brightness and contrast levels
- VIP65 and chemical resistant front
FLEX ISIC – MIL-APPROVED MARINE HARDWARE

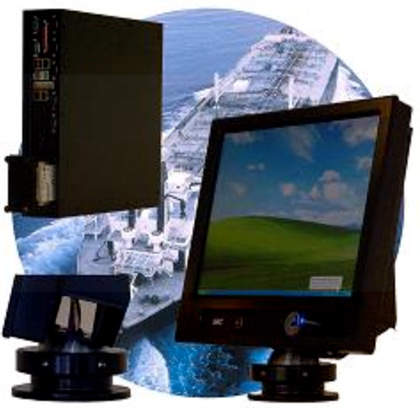

FLEX ISIC is a new modular and flexible concept from ISIC designed for marine applications. FLEX ISIC is available as a black box PC, rugged monitor and panel PC:
- Available in 15in, 17in, 19in, 21in and 23in display size
- Unique rugged and compact aluminium cabinet
- Unique heat-pipe cooling technology
- Removable hard disk drive
- Long product life cycle
- Celeron / Centrino based CPU up to 2.1GHz
- Micro ITX motherboard
- Touch or potentiometer dial for 100% dimming
- Longer lifetime due to fan less engine room
- IP65 sealed front with USB access
- Panel-mount version as standard
- Integrated loudspeaker as optional extra
- Touch screen as optional extra
- OEM front design as optional extra
- Unique ball bearing for desk, wall or roof mounting as optional extra

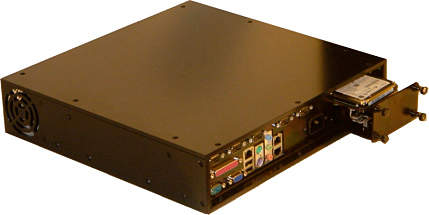

FLEX ISIC BLACK BOX MARINE RUGGED COMPUTER
The FLEX ISIC black box PC marine rugged computer is a rugged, powerful Celeron / Centrino-based marine PC, built around ISIC’s unique aluminium cabinet with heat-pipe cooling technology. A patented vibration kit for the hard disk mount makes it possible to mount the PC at any angle.
Expansion box for up to two PCI (full length) slots is available as an optional extra.

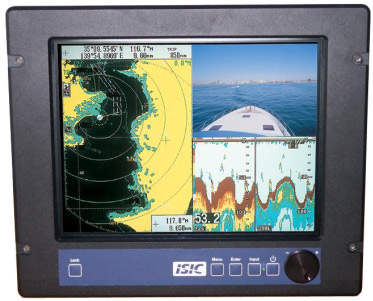

FLEX ISIC MARINE RUGGED MONITORS
FLEX ISIC marine rugged monitors are based on displays with excellent viewing angles and brightness. Features touch or potentiometer for 100% dimming control.
All FLEX ISIC marine rugged monitors have impact-resistant front glass, is – as a minimum – IEC 60945 approved, and larger rugged monitors are ECDIS compatible.
As an optional extra, the marine rugged monitors can be supplied with IP65 programmable integrated loudspeakers for voice commands or buzzer functions.
FLEX ISIC NAVAL PANEL PC RUGGED COMPUTERS
FLEX ISIC naval panel PC rugged computers are based on the black box PC and rugged monitor, this ensures a state-of-the-art panel PC for naval use at sea. A unique ball bearing for desks, walls or roof-mounting is an optional extra. An IP65 sealed USB port is accessible from the front of these rugged computers.
RUGGEDISED HARDWARE DESIGN
The ruggedised design of ISIC’s hardware makes it reliable and able to provide trouble-free operation in extreme environments.
This design is based on temperature management, sealing technology, vibration and shock absorption, EMC and material selection.
All products comply with a wide range of MIL specifications.
EXCELLENCE IN CUSTOMISATION
Due to excellence in product customisation, ISIC has always been able to meet its partners’ different and distinct demands for special designs and product form factors in a cost effective way.
EXTENDED PRODUCT LIFE
Product concept and design bridges the ‘life time gap’ of one to two years for rugged computer hardware technology, against five to 20 years for navigation, satellite communication, propulsion, transmission and engine room equipment onboard vessels
ISIC naval hardware is installed worldwide by global leading partners like Offshore Systems, Furuno, Sperry group, MAN B&W, Consilium, ABB marine and WA-Systems.
