Maritime High Brightness Widescreen Monitor
The new BayPanel 822 WDA from Baytek combines the features most commonly requested by maritime monitor users perfectly in one product.
17 September 2013Baytek was founded in 1996 with the goal of developing and producing flat-panel oriented hardware for high-end applications.
Baytek was founded in 1996 with the goal of developing and producing flat-panel oriented hardware for high-end applications. We have emerged from an intensely competitive environment to take, step by step, a leading position in almost of the market segments covered by our products.
We currently offer standard and customer-specific flat-panel orientated displays and workstations for maritime, military, industrial and automotive environments.
Baytek offers a complete series of IEC 60936, IEC 60945, IEC 61174 (ECDIS), IEC 17025 (DAR) and Germanischer Lloyd (GL) approved maritime displays ranging from 17in to 23in.

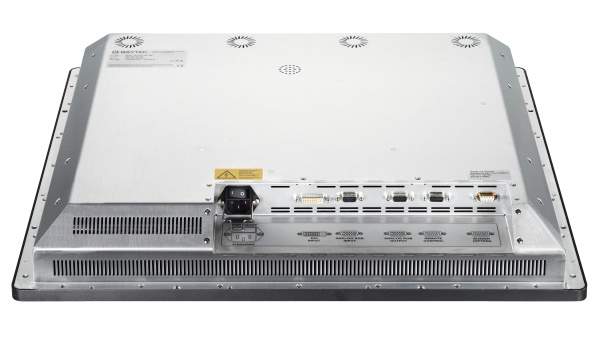

The BPM and BQM displays include, among other features, saltwater-proved aluminium housing, coated mineral glass pane, IP65 front bezel, modern electronic, buzzer interface, standard remote-control interface and a wide range of mounting capabilities.

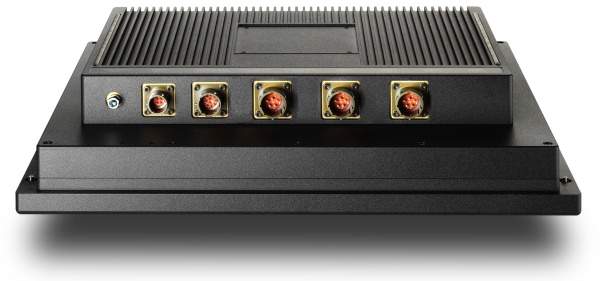

Our BQR rugged displays are MIL-STD-461-C/-E (naval submarine / naval surface) and MIL-STD-810-E approved displays. Full-milled, saltwater-proved aluminium housing, all-round IP67 protection level, customer-specific Amphenol MIL-DTL-38999 series I and II connectors configuration, integrated wide-range AC or 28VDC power supplies, and flat-panel active area sizes from 17in up to 20in are just some of the advantages.

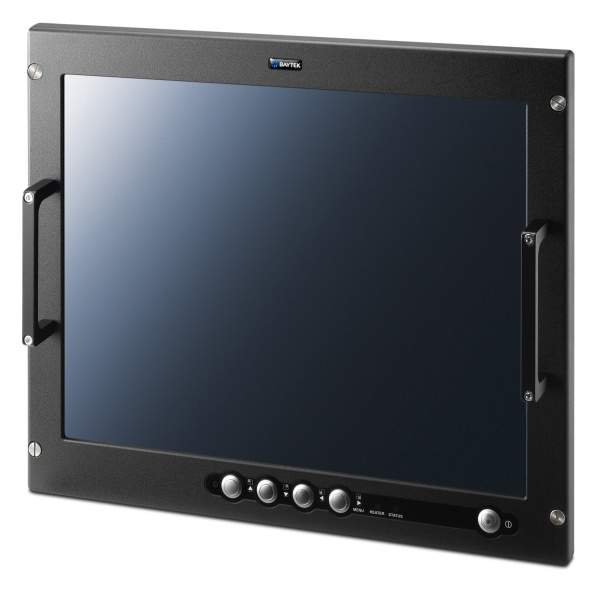

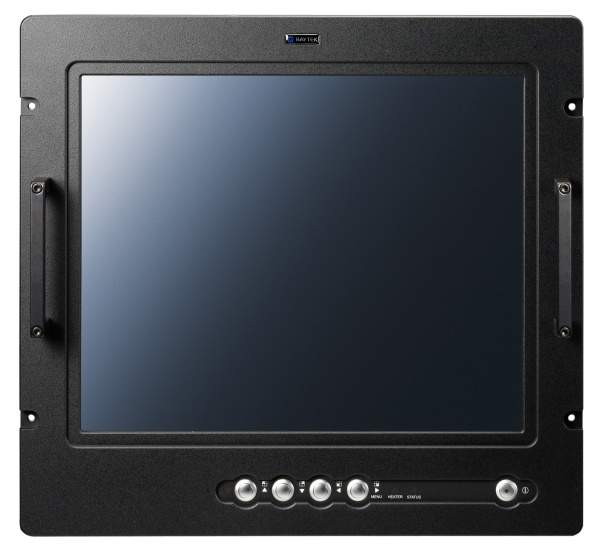

BayPanels are specially designed for 19in rack or console-mounting applications. Specifications include aluminium housing; 3mm front glass or touch-screen sensor pane; flat-panel active area sizes from 6.4in up to 20in; integrated wide-range AC power supply or wide-range DC/DC power converters; DVI and analogue RGB interfaces; CVBS and Y/C video inputs; and remote OSD control.
This stand-alone display series is specially designed for hard automotive and industrial applications. Product highlights include full-milled aluminium housing; VESA 100 mounting; 3mm front glass or touch-screen sensor panes; flat-panel active area sizes from 8.4in up to 20in; integrated DC / DC power converters in three wide-range DC input voltage ranges; DVI and analogue RGB interfaces; and remote OSD control.
BQC is our newest product line and integrates embedded computing power to our flat-panel technology expertise. Full-milled, anodised, saltwater-proved aluminium housing; 3mm front glass or touch-screen sensor panes; high computing performance (Intel® Core 2 Duo-based CPUs); silicon disk mass storage; gigabit link; PC standard or customer-specific Amphenol MIL-DTL-38999 series I and II connector configurations; integrated wide-range AC or 28VDC power supplies; and flat-panel active area sizes from 17in up to 20in are some of the benefits.
The new BayPanel 822 WDA from Baytek combines the features most commonly requested by maritime monitor users perfectly in one product.
17 September 2013At this year's SMM 2012 exhibition in Hamburg, Baytek (Hall B6 - Stand 108) will be presenting a ranfe of innovative new products.
14 August 2012At this year's SMM exhibition, Baytek will be presenting the next leap forward in maritime segment innovation.
3 August 2012At this year's SMM exhibition, the German manufacturer Baytek (Hall B6 - Stand 108) will be presenting innovative new products for the maritime sector.
3 August 2012Baytek is now offering the new maritime BQM monitor with fully enclosed housing for outdoor areas specifically for this demanding sector.
