San Giorgio Class Landing Platform Dock (LPD), Italy




Key Data


 San Giorgio Class Landing Platform Dock

Three San Giorgio Class amphibious transport dock ships in service with the Italian Navy were built by Fincantieri at their Riva Trigoso shipyard. The three ships are: MM San Giorgio (L9892) commissioned in 1987, MM San Marco (L9893), commissioned in 1988 and MM San Giusto (L9894), commissioned in 1994.

The ships are based at the Brindisi naval base on the Adriatic coast. The Italian Navy plans to replace the first two San Giorgio Class ships with new 20,000t LHDs.

The ships provide roll-on / roll-off landing capability for land embarkation, air lift through the use of high capacity aircraft, such as Chinook-type helicopters, and transportation by sea to shore, using the ship's own systems and landing ships for landing on unprepared shores.

Design features of the San Giorgio Class LPDs

"San Giorgio and San Marco were modified to increase the flight deck for supporting the operations of four helicopters at a time."

San Giorgio Class ships can lift a battalion of troops, with up to 30 medium tanks, or 36 tracked armoured vehicles. The stern floodable dock can accommodate three LCM (or MTM) landing craft, each capable of transporting 30t of material.

Three davits on the main deck are provided for the deployment of three LCVP (or MTP) landing craft and a patrol boat.

San Giusto has a full load displacement 300t higher than her sister ships. The ship has no bow doors for beach landings. The three davits for the deployment of landing craft and the patrol boat are relocated to a sponson installed on the port side of the ship, instead of on the flight deck.

San Giorgio and San Marco were modified to increase the flight deck for supporting the operations of four helicopters at a time. The 76mm gun mount and two port side davits for LCVP's were removed to provide space for a new central flight deck.

This allows two EH 101 helicopters and two medium helicopters (NH 90 or AB 212) to be launched at the same time. The LCVP's were moved to below the sponson and the bow doors were also removed.

A 30t lift and a two-hook travelling crane, each hook rated to carry 40t, are installed on the ship providing the capability of autonomous loading and unloading operations completely independently of harbour facilities.

Aircraft landing spots and weapons

The main flight deck, which runs almost the length of the ship, has three helicopter landing spots. The ship can accommodate three Sea King SH-3D helicopters or five Agusta Bell AB-212 helicopters.

"The Italian Navy plans to replace the first two San Giorgio Class ships with new 20,000t LHDs."

The ship has the IPN 20 combat data system and the NA 10 fire control system, both from Selex Sistemi Integrati (formerly Alenia Marconi Systems). It is also equipped with a telecommunications system from Elmer MAC.

An Oto Melara 76/62 gun is installed on the gun deck at the bow of the ship. The gun fires 6kg rounds at a firing rate of more than 80 rounds/min to a target range of 8.5 nautical miles.

The ship is also armed with two Oerlikon 20mm machine guns for close defence.

The ship's electronic warfare system comprises of an electronic countermeasures and electronic support measures (ECM/ESM) suite supplied by Elettronica of Rome.

Sensors of the LPDs

The ship's radar suite includes the Selex Sensors & Airborne Systems (formerly Galileo Avionica) MM/SPQ 702 search radar and SPN-748 navigation radar, both operating at I band, and the Selex RTN-10X fire control radar, operating at I and J bands.

Propulsion of San Giorgio Class landing platform docks

The ships are powered by two GMT A 420.12 diesel engines supplied by the Diesel Engine Division of Fincantieri. The engines provide 16,800hp, delivered to two shafts with constant pitch propellers.

The ship is equipped with four Fincantieri GMTB 230.6 diesel generators supplying 3,080kW. The propulsion system provides a maximum continuous speed of 21 knots. At the economical speed of 16 knots the maximum range of the ship is 7,500 nautical miles.


The Global Naval Surface Combatants and Warfare Systems Market 2011-2021

This project forms part of our recent analysis and forecasts of the global naval surface combatants and warfare systems market available from our business information platform Strategic Defence Intelligence. For more information click here or contact us: EMEA: +44 20 7936 6783; Americas: +1 415 439 4914; Asia Pacific: +61 2 9947 9709 or via email.

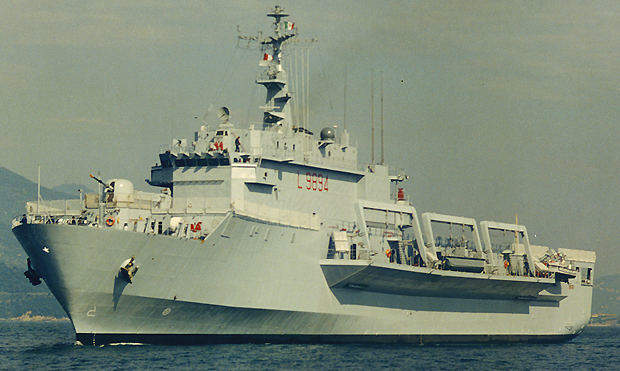

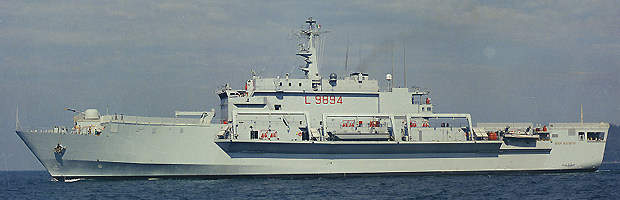

Port view of the San Giorgio Class amphibious transport dock ship MM San Giusto (L9894).

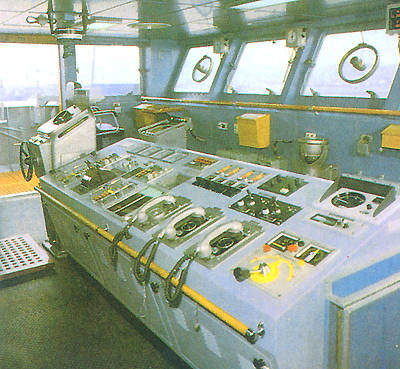

Bridge of a San Giorgio Class LPD.
The bridge deck of San Giorgio LPD is accommodated in the island on the starboard side.

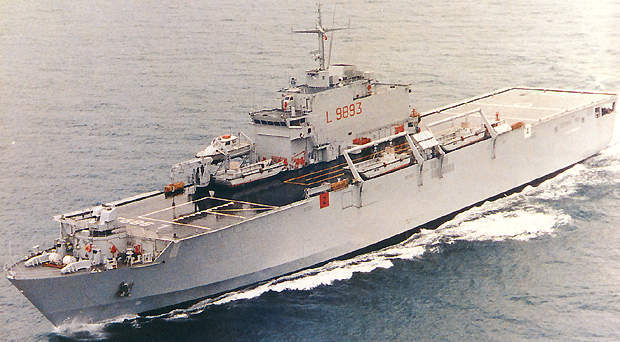

Long-side view of the San Giorgio class amphibious transport ship MM San Marco (L9893).

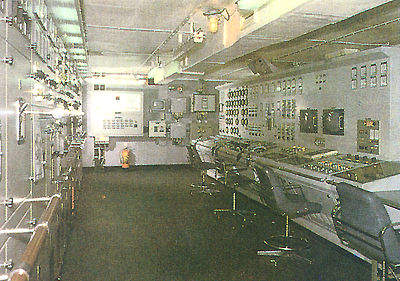

Control room of the San Giorgio Class amphibious transport dock ship.
San Giorgio ships can lift a battalion of fully equipped troops, with up to 30 medium tanks.

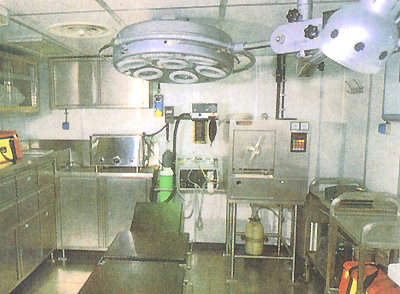

San Giorgio LPD has hospital facilities for peace-time rescue and humanitarian operations.
