Length bp.
135.60m
Breadth, Moulded
16.10m
Depth
10.20m
Full Load Displacement
5,400t
Surface-to-Surface Missile System
MBDA OTOMAT Mk2, 4 x twin launchers
Surface-to-Air Missile System
SAM Albatross MK2, 16 missiles
Surface-to-Air Missile
1 x standard SM-2 MR Tartar GMLS MK13 missile system
Main Gun
1 x Oto Melara 127/54 main gun
Close-in Weapon Systems
3 x Oto Melara 76/62 Super Rapide guns
Torpedo Launch System
2 x B-515 triple tube torpedo launch systems
Torpedo System
SLQ-25 Nixie
Rocket Launcher
EADS Sagaie rocket launcher system for firing chaff
Long-Range Three-Dimensional Air Search Radar
Raytheon AN/SPS-52C
Air Search Radar
MM/SPS-768
Air Search and Surface Search Radar
MM/SPS-774
Surface Search Radar
MM/SPS-702
Fire Control Radars for the Dardo
4 x SPG-76
Fire Control Radars for the Surface-to-Air Missiles
2 x Raytheon SPG-51D
Navigation Radar
MM/SPN-748
Information Friend or Foe (IFF)
Mark X/XII transponder
Tactical Air Navigation System (TACAN)
SRN-15A
Sonar
Raytheon DE 1167 H.M. sonar and DE 1164 VDS
Command and Control System
IPN 20
Weapon Control System
NA 30 (Dardo E)
Electronic Warfare
Elettronica SLQ-732 Nettuno radar warning receiver and jammer
Systems
Elmer communication system
Satellite communications system
Link 11
Link 14
Propulsion System
Combined Diesel Or Gas (CODOG)
Gas Turbine Engines
2 x Fiat/GE LM 2500 GT sustained power 40.3MW
Diesel Engines
2 x GMT BL 230.20 DVM
Sustained Power
9.3MW each
Maximum Speed on Gas Turbine Engines
Over 31kt
Maximum Speed on Diesel Engines
Over 20kt
Range at Economical Speed - 18kt
7,000nm
Helicopter Deck and Hangar
Agusta Bell AB 212, Sea King SH-3D, or the EH101
Crew
377
Entered service
1993
Manufacturer
Fincantieri, Italy
Operator
Italian Navy
Draught
8.6m

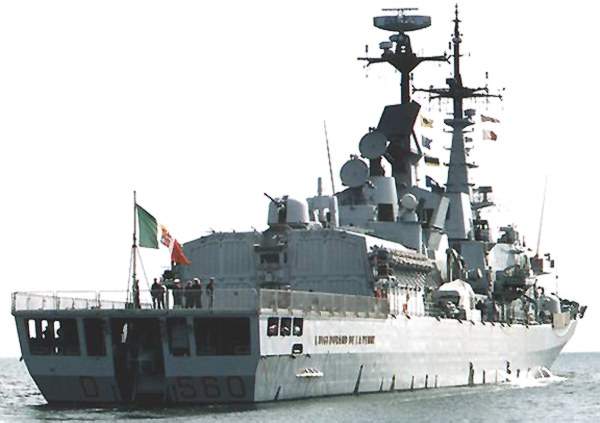

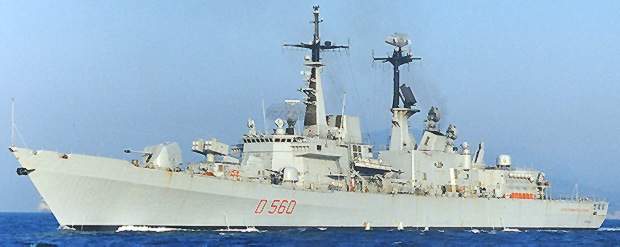

The Durand De La Penne Class destroyers were built by Fincantieri for the Italian Navy. The keel of the first-of-class ship, MM Luigi Durand De La Penne (D560), was laid in 1988 and was launched in October 1989. The keel for the second, MM Francesco Mimbelli (D561), was laid in 1989 and launched in April 1991. The D560 and D561 were commissioned in March 1993 and October 1993 respectively. The Italian Navy initially planned to procure four ships but the second pair was cancelled as it joined the Horizon Project. The ships were constructed at Fincantieri’s Riva Trigoso shipyard.
The Durand De La Penne destroyers are 5,000t multi-role warships able to perform anti-air defence for protecting task forces and convoys, anti-submarine and anti-surface warfare operations, assistance during landing operations and coastal bombardment.
COMMAND AND CONTROL
The IPN 20 command and control system, supplied by Alenia Marconi Systems (now Selex Sistemi Integrati), gathers information from the ship’s sensors, and communications and data networks in order to compile, maintain and display the tactical situation. The Elmer communication system is integrated with a satellite communications system with Link 11 and Link 14.
The NA 30 (Dardo E) weapon control system is supplied by Selex Sistemi Integrati. NA 30 includes an infrared camera and laser rangefinder, as well as the Selex RTN 30X fire control radar.
MISSILES
The ship’s surface-to-surface missile system is the MBDA (formerly Alenia) OTOMAT Mk2. Four twin launchers are installed on the missile deck amid-ship between the two radar masts. The missile uses mid-course guidance and active radar homing to approach the target at high subsonic speed in sea-skimming mode to deliver a 210kg warhead to a range of 140km.
The vessels were fitted with an upgraded Otomat missile, the MBDA Teseo Mk 2/A. The Italian Navy awarded a production contract for the missile in August 2006.
The Albatros Mk 2 medium-range surface-to-air missile system is supplied by MBDA (Alenia) of Rome. It is installed on the gun deck immediately behind the ship’s main gun. The Albatros system employs the semi-active Aspide missile to provide the ship with point defence. The range is 15km.
The ship is also equipped with the Raytheon Standard Missile SM-2MR Tartar GMLS Mk 13 missile system for defence against medium-range airborne targets. The SM-2MR has semi-active radar guidance and a range of 70km. The ships are fitted with the MBDA MILAS anti-submarine missile system.
GUNS

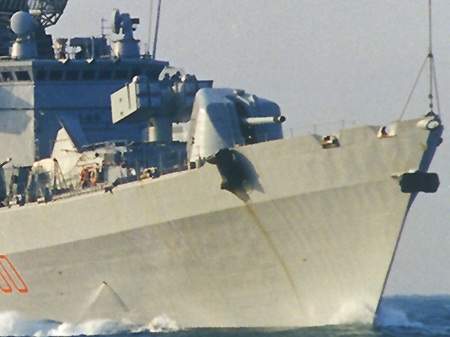

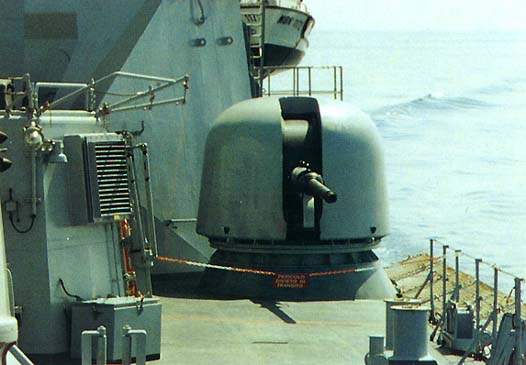

The ship’s main gun, the Oto Melara 127mm 54-calibre gun, fires 32kg rounds to a range of more than 15km. The maximum firing rate is 45 rounds a minute. Three Oto Melara 76mm 62-calibre Super Rapide guns are installed, which fire 6kg shells to a range of 15km at a rate of 120 rounds a minute.
TORPEDOES
The ship is armed with two B515 torpedo launch systems by Whitehead Alenia. Each B515 is a triple launch tube system.
The Durand de la Penne class has been fitted with the Eurotorp MU90 Impact torpedo along with the MILAS ASW rocket system in 2002. Eurotorp is a consortium formed by Whitehead Alenia Sistemi Subacquei (WASS), DCN and Thales. MU90 has a directed energy warhead and a range of 12,000m at maximum speed and 25,000m at minimum speed. The torpedo is also in service with the Italian Navy.
HELICOPTERS

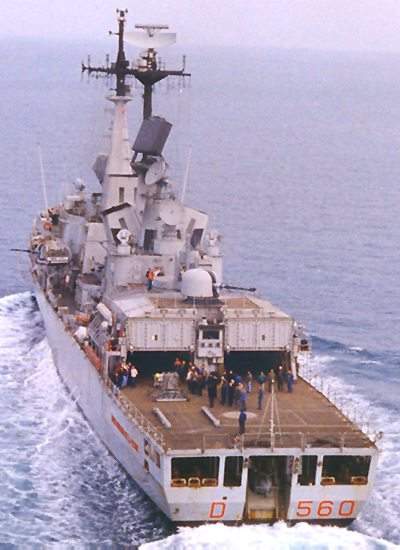

The ship is equipped with a helicopter deck and a hangar with facilities for two helicopters such as the Agusta Bell AB 212, the Sea King SH-3D or the EH-101.
COUNTERMEASURES
The ship’s countermeasures systems include the Sagem Défense Sécurité (formerly EADS Defence & Electronics) Sagaie rocket launch system for firing chaff, SLQ-25 Nixie anti-torpedo system, and the SLQ-732 Nettuno radar warning receiver and jammer supplied by Elettronica.
SENSORS
The ship’s radar suite includes: Raytheon SPS-52C E-band long-range three-dimensional air search radar; Selex MM/SPS-774 (RAN 10S) F-band air search and surface search radar; Selex MM/SPS-768 D-band air search radar; Selex (formerly Galileo Avionica) MM/SPS-702 I-band surface search radar; four Selex fire control radars for the NA 30 operating at I and J band; two Raytheon AN/SPG-51D fire control radars for the surface-to-air missiles, operating at G and I bands; and Selex MM/SPN-748 navigation radar operating at I band.
The ship is equipped with the Raytheon DE 1167 medium frequency hull-mounted active search and attack sonar and the DE 1167 Variable Depth Sonar (VDS).
PROPULSION
The ship’s propulsion system is based on a Combined Diesel Or Gas (CODOG) arrangement. The two gas turbine engines, the Fiat/GE LM 2500 GT provide a sustained power of 40.3MW. The diesel engines, GMT BL 230.20 DVM are rated at a sustained power level of 9.3MW each.
