Hagenuk Marinekommunikation (HMK), a subsidiary of Atlas Elektronik GmbH (Germany), is a well-known supplier of internal and external communication systems for naval and ground-to-air applications, with radios operating in the frequency range from VLF to SHF.
As a systems integrator and HF radio equipment manufacturer, HMK focuses on integrated communication systems (ICS) for naval vessels as well as HF ground-to-air applications.
Our broad product range includes:
- HF transceivers 150 W / 500 W / 1 kW
- HF transmitters 500 W / 1 kW / 5 kW / 10 kW
- VLF/HF receivers (10 kHz – 30 MHz)
- Antenna tuning units (ATU)
- HF broadband systems
- Radio antenna matrix
- HF adaptive radio systems
- Digital video, audio and data distribution systems
- Message handling and control systems
- HF e-mail systems
- Mobile and shore comms
- Fully dismountable consoles/racks for submarines/surface vessels
HMK provides a full-service package, including feasibility studies, system engineering, hardware / software design, production, system integration and setting to work as well as integrated logistics support (ILS) combined with comprehensive after-sales services over the whole product life cycle.
In more than 40 years, HMK has built and delivered more than 560 integrated internal / external communications systems for all classes of vessels, including 130 submarine solutions.
High-performance high-frequency equipment for the naval industry

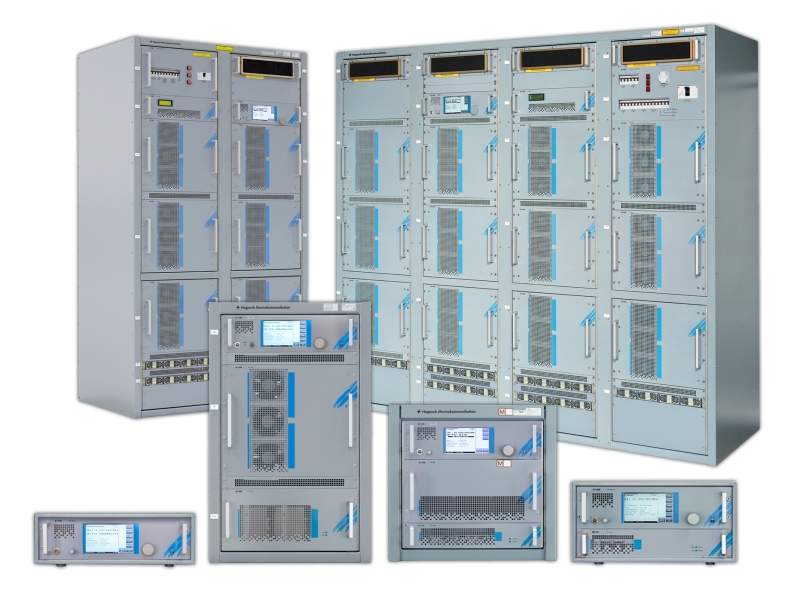

HMK’s HF Radio Series 3000 is a family of software-based, multi-purpose, high-performance and modular equipment in the frequency range 10kHz to 30MHz (receive) and 1.5MHz to 30MHz (transmit).
It includes the transceivers TRX 3015 M (150 W) / TRX 3050 M (500 W) / TRX 3100 M (1 kW), the transmitters TX 3500 M (5 kW), TX 310K M (10 kW) and the VLF/HF receiver RX 3003 M.

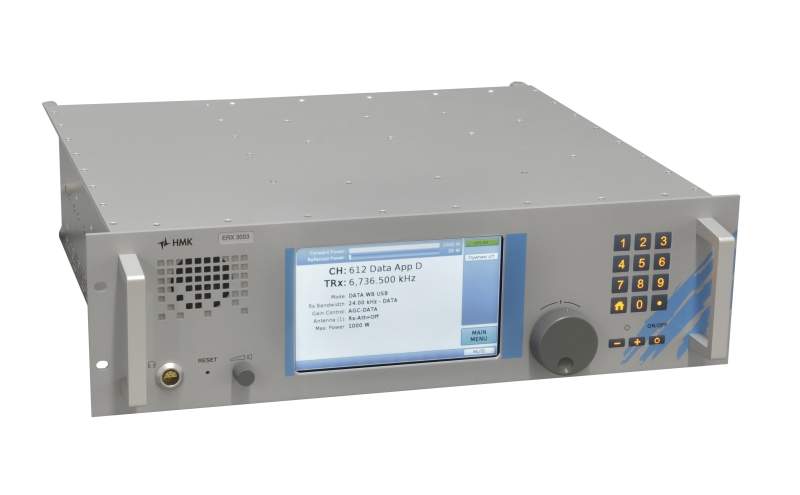

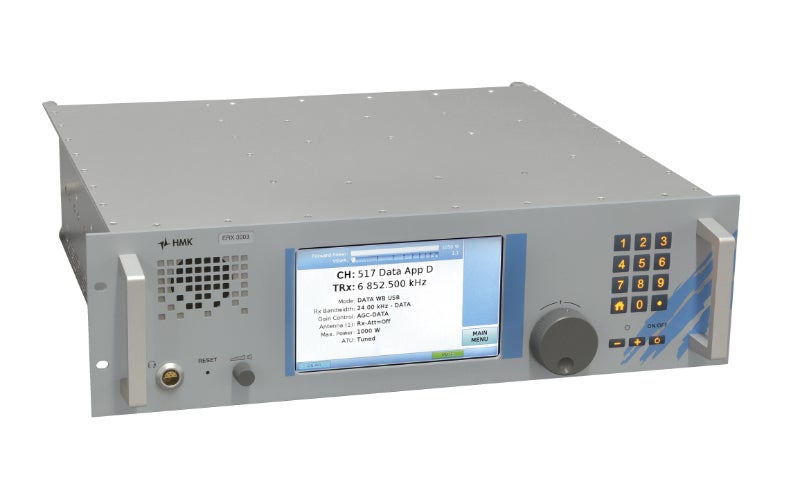

The new exciter / receiver ERX 3003 is a plug and play replacement of the well-known exciter / receiver ERX 3000 and boosts the radio family into the new generation of software-defined radios (SDR) with 24kHz HF wideband capability and allows up to 120kBit/s data transmission speed. Its highly dynamic conversion technology results in an outstanding co-site performance, which is important for multi-transmitter applications onboard naval vessels, (optional automatic link establishment ALE 2 / 3 / 4 G)
Antenna tuning units for naval applications
- 150W, 500W and 1kW HF power (1.5MHz to 30MHz)
- Special versions for submarine applications (inboard installation and inside hoistable antenna masts)
DSC controller DSC 3002
- Class A DSC Controller including distress functionality according to GMDSS (SOLAS)
- System-interface for HMK radios TRX 3015 / TRX 3050
Radio antenna matrix
- Coaxial Switching Unit CSU 30xx Series

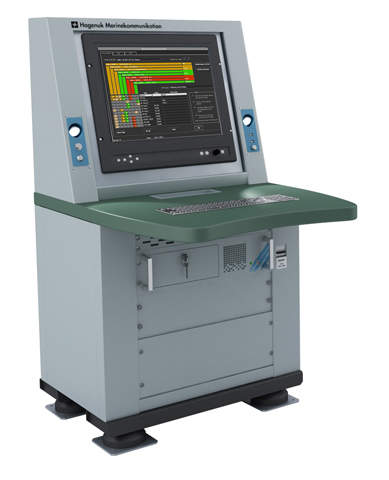

- Remote Control Unit UT 3002 (alternatively: SEICAM®2000)
Message handling and control systems
- Message handling and formatting according to standards ACP 127, JANAP 128, ADatP-3 and others
- Network management for central control of the entire external/internal communication system
- Optional X.400 server and certified X.400 filter
Digital audio and data distribution system for internal / external communications
- Audio and data distribution for internal /external communications
- Proven design, modular, flexible and redundant configuration
- Point-to-point connections, conferences and alarms

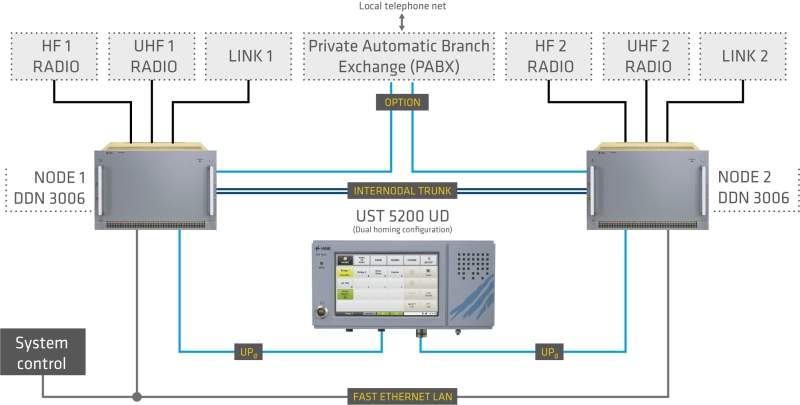

- Audio panels: User Stations family UST 10XX (keypad)
IP-based digital audio, video and data distribution
- Intelligent and compact User Stations family UST 5XXX with touch screen (6.5in colour TFT display), split mode for external/internal operation and desktop software available for PCs
- Reduction of cabling due to equipment-to-bus (EBI) concept with distributed bus sockets for direct equipment access to radio network and no network interruption in case of equipment failure

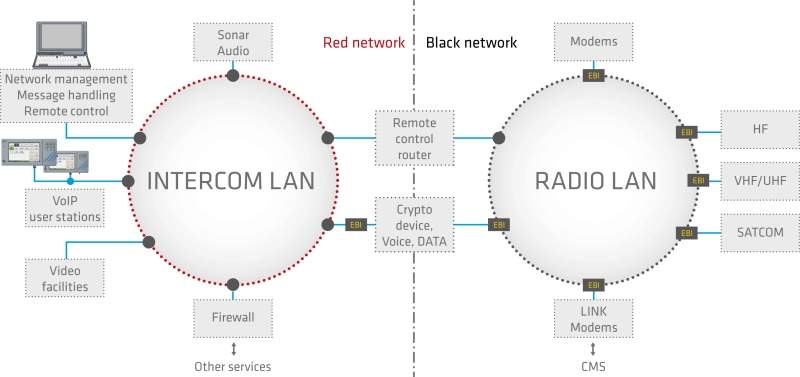

- Flexible and decentralised system architecture with a radio network for access to radio facilities, intercom LAN with interfaces to other ship subsystems, network management system for configuration, monitoring and contron, as well as utilisation of existing IP backbone systems
- Multi-services broadband IP infrastructure based on standard protocols and with the secure exchange of voice / audio, data / multimedia and video

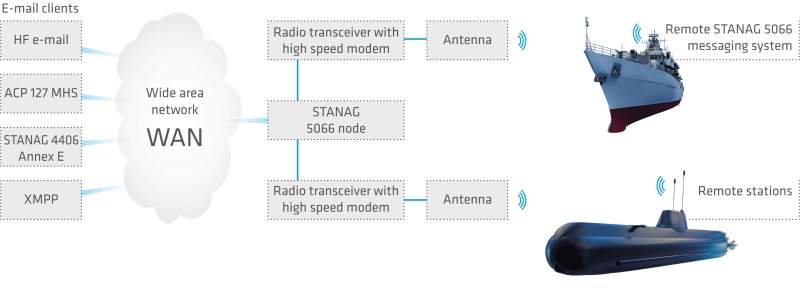

IP-based HF messaging systems for marine applications
- Optional part of the HF Radio Series 3000
- Compliant with STANAG 5066
- Deployable at mobile (i.e. ships) and fixed installations (shore stations)
- Extendable to distribution over an internet-based wide area network
- Compliant with MIL-STD-188-110A and B
- Automatic managed transmission data rate depending on link quality
- Integrated e-mail server (configurable for external e-mail servers)
- Point-to-point and broadcast operation
- Automatic anti-collision management
- Fully supporting second and STANAG 4538 third generation automatic link establishment (ALE) if used with the HF Radio Series 3000
- Reduced training needs due to COTS/ MOTS client software (Outlook, Thunderbird etc.)
System integration
- Integration of customer-selected equipment into a functional system
- Consideration of shock, vibration and EMC requirements
- Antenna top deck design in cooperation with shipyard
- Test specifications for equipment/system tests
Project management
- Goal-oriented, cooperative and pragmatic
- Strict adherence to delivery dates
- 100 % customer satisfaction
Integrated logistics support (ILS)
- Maintenance concepts
- Spare parts support and test equipment
- Technical publications (PDF, IETD according to ASD S1000D)
- Material management (according to ASD S2000M)
- Reliability / maintainability analyses
- Training
- Configuration management
- Obsolescence management
- Worldwide technical service and installation support
