Esterline Palomar Products

Secure Communications Management Systems

23042 Arroyo Vista,
Rancho Santa Margarita,
CA 92688,
United States of America

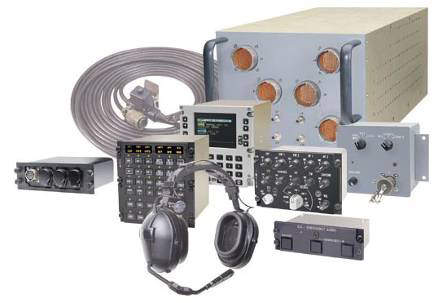

Esterline Palomar Products designs and manufactures highly reliable secure voice and data switching systems for military airborne, ground-based and shipboard applications. Palomar secure intercommunications systems provide crewmembers access to radios, cryptos and intercom voice channels. Palomar systems provide simultaneous multi-level secure communications and are TEMPEST qualified.

SA-2112 family of secure shipboard switches

The SA-2112(V)/STQ secure Voice Switch (SVS) system is designed to satisfy the US Navy’s requirement for an integrated secure/nonsecure system. The system is comprised of a central secure voice switch, the SA-2112(V)/STQ, and a number of remote control indicators (CINs), C-10276/SSC.

The modular SVS replaces dedicated plain and secure voice switches with a single automated switch providing remote use access, clear/cipher capability and multiple channel selection. The SVS and CINs are self-contained units developed for naval platforms and meet the requirements of MIL-E-16400 and secure communication criteria for inter-channel isolation.

Two basic configurations of the central switch are provided – a standard SA-2112(V)n/STQ, physically packaged in a six foot cabinet, and a small ships configuration, SA-2112(V)1/STQ, that is physically packaged in a smaller 32in cabinet.

Palomar secure communications systems are installed on many military shipboard, airborne and land based platforms throughout the world.
The SA-2112 secure voice switches are installed on most ships in the U.S. Navy that are frigates or larger.
The DCS-2100 Digital CMS is used as the ICS for P-8A and all Boeing 737 AEW&C aircraft.
The CCS-2100 is used as the ICS on many P-3s, AC-130 Gunships, VIP helicopters and numerous other platforms.

DCS-2100 communications management system (CMS)

The DCS-2100 is a state-of-the-art digital communications management system that is currently in production for P-8A and other airborne applications. When packaged in a shipboard compatible chassis, it can serve as a replacement to the SA-2112. The system is based on Palomar’s field-proven multi-level secure digital switching technology that provides a complete solution for systems demanding high quality, low latency secure digital voice/data switching. The system provides crewmembers with access to a large number of radio and intercom channels. It provides cross-band and in-band radio relay, generates aural warnings, provides modem and crypto switching and allows simultaneous operation at all security levels. The switching units have Gigabit Ethernet interfaces that can be used for recording, BIT status reporting and communications control from the mission computer. This Ethernet interface can also be used as an IP gateway for VoIP and data communications via the aircraft LANs.

CCS-2100 intercommunications system (ICS)

The CCS-2100 family of products provides a range of solutions for secure intercommunication applications. The extremely high channel-to-channel isolation allows multilevel security, private radio channels and private intercom channels. The integrated, microprocessor controlled, modular distribution system is designed for real-time adjustment of communication assets to meet the operational requirements of each mission.

The flexible, modular units allow designs from simple internal/external communication systems to full command and control systems that include crypto and data link assignments, clear/secure radio relay, clear/secure simulcast, unlimited conference networks and selective dial -up. In addition, systems can be integrated with a host computer via a MIL-STD-1553B or RS-422 network links.

P-3C Orion Maritime Patrol Aircraft

The P-3C Orion land-based maritime patrol and anti-submarine warfare aircraft is operational in the airforces of ten countries. More than 700 P-3 aircraft have been built by Lockheed Martin.

USS Enterprise (CVN-65) Aircraft Carrier

USS Enterprise (CVN-65) was considered to be the first nuclear-powered aircraft carrier and the largest active warship in the world when commissioned by the US Navy in November 1961.

SSN Seawolf Class

The Seawolf was designed as a faster, better-armed eventual replacement for the Los Angeles class nuclear-powered attack submarines.

LHD Wasp Class Amphibious Assault Ships

Wasp-class landing helicopter dock (LHD) amphibious assault ships are built by Northrop Grumman Ship Systems (formerly Litton Ingalls Shipbuilding) of Pascagoula, Mississippi, US.

Ticonderoga Class Aegis Guided-Missile Cruisers

27 Ticonderoga Class (CG 47 – CG 73) Aegis guided missile cruisers were built between 1983 and 1994 by Ingalls Shipbuilding at Pascagoula, Mississippi and Bath Iron Works (a General Dynamics Company) in Bath, Maine, US.
